φ1800X12000mm Factory price high quality single drum coal slime
dryer with good after-sale
Product Description
The coal slime dryer consists of feeding plate,driving device,
rotary drum, supporting device,gearing and seal circle and so on.
Applications:
Powder & particle: Sands, limestone, stones, clay, mineral filter
cake, coal, iron sulphate, filter cakes, fly ash, gypsum etc.
Damp and sticky material: Coal slime, sewage sludge, bentonite,
Kaolin etc.
Corrosive material: Distillers ‘grains, Fertilizer, animal dung,
slag etc.
Biomass material: Sawdust, wood chips etc.

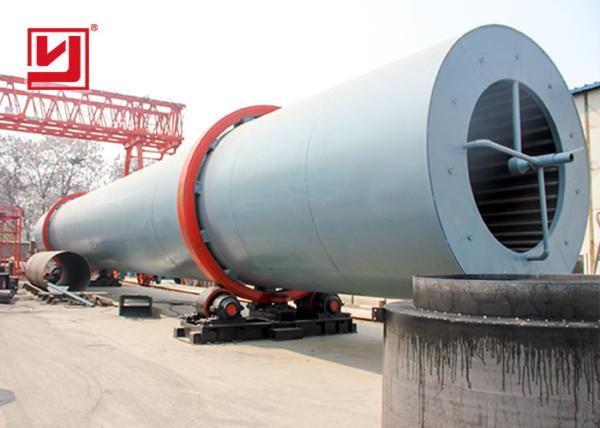

Detailed Images
Technology Parameter
| Model | Gradient | Rotation speed | Max feed-in gas temperature | Power | Output | Weight |
| (%) | (r/min) | (℃) | (kw) | (t/h) | (t) |
| 600×6000 | 3-5 | 3-8 | 700 | 3 | 0.5-1.5 | 2.9 |
| 800×8000 | 3-5 | 3-8 | 700 | 4 | 0.8-2.0 | 3.5 |
| 800×10000 | 3-5 | 3-8 | 700 | 4 | 0.8-2.5 | 4.5 |
| 1000×10000 | 3-5 | 3-8 | 700 | 5.5 | 1.0-3.5 | 5.6 |
| 1200×10000 | 3-5 | 3-8 | 700 | 7.5 | 1.8-5 | 14.5 |
| 1200×12000 | 3-5 | 3-8 | 700 | 11 | 2-6 | 14.8 |
| 1500×12000 | 3-5 | 2-6 | 800 | 15 | 3.5-9 | 17.8 |
| 1800×12000 | 3-5 | 2-6 | 800 | 18 | 5-12 | 25 |
| 2200×12000 | 3-5 | 1.5-6 | 800 | 18.5 | 6-15 | 33 |
| 2200×18000 | 3-5 | 1.5-6 | 800 | 22 | 10-18 | 53.8 |
| 2200×20000 | 3-5 | 1.5-6 | 800 | 30 | 12-20 | 56 |
| 2400×20000 | 3-5 | 1.5-5 | 800 | 37 | 18-30 | 60 |
| 3000×20000 | 3-5 | 1.5-5 | 800 | 55 | 25-35 | 78 |
| 3000×25000 | 3-5 | 1.5-5 | 800 | 75 | 32-40 | 104.9 |
Advantage of the rotary dryer:
1. Strong resistance to overload, large capacity, less fuel
consumption, and low drying cost.
2. Adapting downstream drying method, the smoke and wet material
goes into the dryer from the same side. Thus could acquire high
evaporation intensity using high temperature smoke. The temperature
of dryer discharge port is low, heat efficiency is high.
3. The operation parameters can be changed according to different
material properties. So that the material inside the dryer cylinder
could form one stable full cut material curtain, heat exchanging is
more fully.
4. Coal slime drying machine system using the new type feed,
discharge device. Put an end to the drum dryer feed plug, not
continuous, uneven and returning materials, and so reduce the load
of dust removal system.
