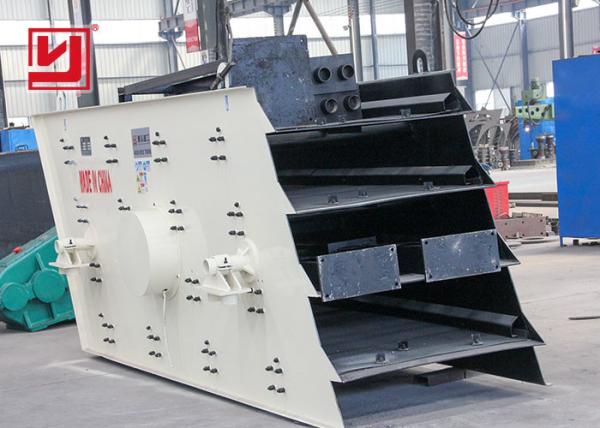

3YK1225 Cheap Price Mechanical Circular Vibrating Screen Equipment
Manufacturer
The Y Series Screen is a multi-layer, high-efficiency and new-type
vibrating screen, specially designed for screening stones in
quarry. And it can also be used for product grading of coal
dressing, ore dressing, building materials, electric power, and
chemical engineering sectors, etc. for the materials of limestone,
granite, marble, basalt, iron ore, pebble, river stone, shale,
bluestone, coal, cobble, construction material
Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message
,you will get 5% discount price.
What are the requirements for vibrating screen material?
A2: Our Yuhong has a high standard on choosing material of
vibrating screen.
1.Using very high grade steel plate (i.e. Q235, Q345) on
structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo,
ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5
brands;
4. Metallurgy performance must be considered during designing,
cutting, bending, fitting&welding
| Model | Sieve
layer | Sieve
area (m2) | Mesh
size (mm) | Max feed
size (mm) | Processing
capacity (m³/h) | Vibrating
frequency (r/min) | Double
amplitude (mm) | Motor
power (kw) | Sieve
obliquity (°) | Sieve
standard (mm) | Total
weight (kg) | Dimensions (L×W×H) (mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3500 | 2930×1860×870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200×2500 | 3850 | 3070×1860×1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200×3000 | 4200 | 3430×1860×870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 3570×1860×1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200×3700 | 4600 | 4050×1860×870 |
| 3YK1237 | 3 | 13.32 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1500×3500 | 5200 | 4270×1860×1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 5890 | 4120×2210×1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500×3500 | 6700 | 4360×2210×1610 |
