Product Description
The Introduction of Coconut Copra Drying Machine
The Introduction of cuconut copra dryer machine/sawdust dryer
machine/wood chip rotary
dryer mainly consist of drum barrel, feeding conver, discharge
conver, roller ring, gear ring, lift
board, reducer and motor etc.
The Introduction of cuconut copra dryer machine/sawdust dryer
machine/wood chip rotary
dryer is widely used for drying coconut copra, sand, coal, sludge,
coal slurry, brown coal, fly
ash, gypsum, clay, Kaolin etc.
Working Principle:
The raw material sand will be fed into the hopper through belt
conveyor or bucket elevator. Sand rotary dryer is a slightly
inclined rotating cylinder with horizontal lines. Raw material sand
will be fed from the higher end, while hot air enters from low-end,
forming counter-current contact with the drying raw material sand.
As the rotation of the cylinder, raw materials run to the end of
the sand dryer under gravity. Wet raw material, in the course of
the cylinder moving forward, directly or indirectly get heat from
hot air which temperature is more than 500°C, for drying wet
material, and then discharged through the screw conveyor or belt
conveyor installed at the end of discharging part. Sand dryer is
equipped with raising plate on the inside cylinder wall, and the
raising plate plays the role of raising and falling down materials,
increasing the contact surface between material and air flow, to
improve the drying efficiency.
Feature of Coconut Copra Drying Machine
The Coconut Copra drying machine has features of reasonable
structure, excellent fabrication,
hgih production, high working efficiency, low consumption, perfect
in workmanship, high yield,
easy to maintain and simple to operate, economical & environmental
etc.

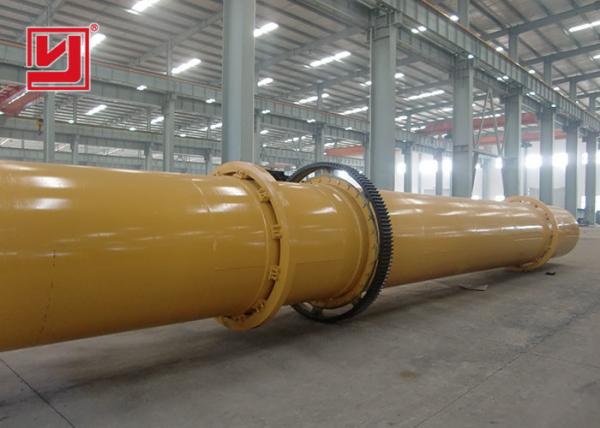

Dtailed Image
Technical Parameter
| Diameter | Length | speed | Installation obliquity | Drying temperature | Capacity | Motor | Weight |
| (m) | (m) | (r/min) | (%) | (°c) | (t/h) | (kw) | (ton) |
| 0.8 | 8 | 3-6 | 3-5% | ≥800 | 0.6-0.8 | 3 | 3 |
| 1 | 10 | 3-6 | 3-5% | ≥800 | 1-1.5 | 4 | 7 |
| 1.2 | 10 | 3-6 | 3-5% | ≥800 | 1.8-2 | 7.5 | 14 |
| 1.2 | 12 | 3-6 | 3-5% | ≥800 | 2-3 | 11 | 15 |
| 1.5 | 15 | 3-6 | 3-5% | ≥800 | 3-3.5 | 15 | 17.8 |
