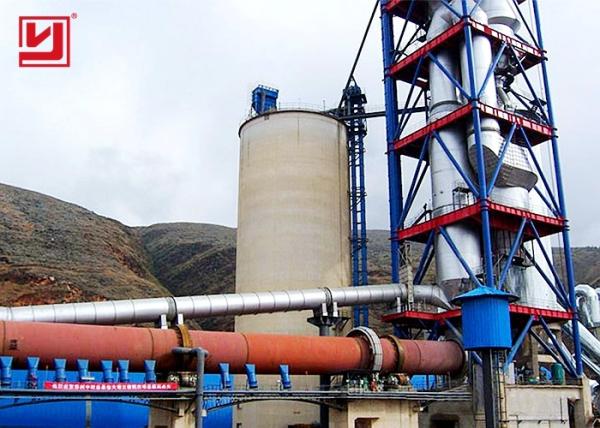

High availability low price rotary kiln for cement kiln and clinker plant

cement plant introduction

We provide the full range service including design, manufacturing, installation. We design and manufacture equipment for new type dry method cement production line, for which the capacity varies from 50t/d to 3000t/d

Mined limestone is delivered to the crusher for crushing by the belt conveyor, limestone after crushing ,clay, iron powder etc will be ground into powder by ball mill or vertical mill, and then transported by air delivery chute to raw meal homogenization silo for storing and further material mix. Raw meal shall get into the preheating decomposition system after homogenization where decomposition rate is about 95%, and raw meal is calcined into clinker in the rotary kiln, the formation of clinker. Clinker, gypsum and mixture is ground into qualified fineness cement in the cement mill. Powder classifier is adopted to adjust the fineness of cement, realizing energy saving production. Cement packing machine and automatic loading machine are used for bagged cement delivery, and cement bulk device for cement canning leaving factory.

1. Crushing and Pre-homogenizing:
Most of the raw materials, like limestone, clay, iron ores, and coal, should be crushed before their pre-homogenization. Limestone is the primary material in this line, and due to its large particle size and high hardness, its good crushing plays an important role in the whole line. Special stacking and reclaiming technology has been used in the pre-homogenizing process so that raw materials can be better primarily homogenized.

2. Raw Meal (raw material) Preparing:
Since the raw meal grinding work takes up more than 30% labor force in the whole dry process cement production line, it is quite important to choose appropriate grinding equipment and technological process so that high-quality products can be obtained.
3. Raw Meal Homogenizing:
The raw meal homogenization is a key factor for stable clinker calcination.

4. Preheating and Decomposing:
The preheater is used to preheat as well as decompose raw meal. So the length of the rotary kiln is effectively shortened. And the raw meal can fully exchange heat with the hot gases from the kiln. Because of its rapid and high-efficiency heat transfer, the production efficiency and heat consumption of this production line are greatly improved.

5. Clinker Calcining:
After its preheating and pre-decomposing, the raw meal will be calcined in the rotary kiln, where the generated carbonate will be further decomposed. Meanwhile, a series of solid phase reactions will take place.

• Clinker Cooling
  the high tempreture clinker from rotary kiln, after cooling by cooling machine, is transported to the next process:storage and cement grinding machine.
  7. Cement Grinding:
  As the last process, the cement grinding will consume a great deal of electricity. And in this process, special size granule cement will be obtained.
• Cement Packaging:
  The cement can be transported in bulk or in bags.

Equipment Supply for cement production line
1. Crushing Equipment : Jaw Crusher, Impact Crusher , Hammer Crusher ,Cone Crusher, Compound Crusher ect.
2.Grinding Mill : Ball Mill , Remond Mill , Vertical Mill , Grinding Machines
3. Rotary Kiln / Machnical Vertical Shaft Kiln
4. Preparation Equipments: :Powder Concentrator , Vibrating Feeder, Megnetic Separator ect.
5. Preheater
6. Dyer , Cooler ,
7. Elevator , Belt Conveyor & Bucket Equipments
8. Cement Packing Equipments
9. Classifier , Dust Collector

OUR ADVANTAGE

1. Cement rotary kiln adopts adjustable speed driving with high efficient and low power consumption.

2. The fuel consumption of unit product is low and large capacity.

3. Stable mechanical performance and transmission, accurate speed control and easy control the calcination temperature.

4. Gears: single or double. The rotating speed is controlled by regulating motor, DC motor or variable frequency and speed regulation motor. Be reliable, energy-saving and efficient.

5. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating device.

Technical Parameters of Rotary Kiln

New dry process cement production line (300-1500t/d) configuration

Henan Yuhong Heavy Machinery Company( Yuhong Group) which mainly manufacture grinding machine, industrial drying machine, Calcining machine (rotary kiln and shaft kiln). It is a modern corporation with research, manufacturing and sales together. located in No.97, West Street Dongqing, National Hi-Tech Development Zone, Zhengzhou, China.

Product quality is life, and scientific innovation is motive power. We Yuhong Group got ISO international quality system certification, European Union CE certification and Russian GOST certification. And we has won a wide range of international market, such as Russian, Azerbaijan, Kazakhstan, Turkey, Kuwait, South Africa, Egypt, Vietnam, Malaysia, India, Australia, Korea, Canada and European Union,etc.Over the past 30 years, our company adheres to modern scientific management system, precision manufacturing, pioneering and innovation. Now Our Yuhong Group has become the leader in domestic and oversea machinery manufacturing industry.
