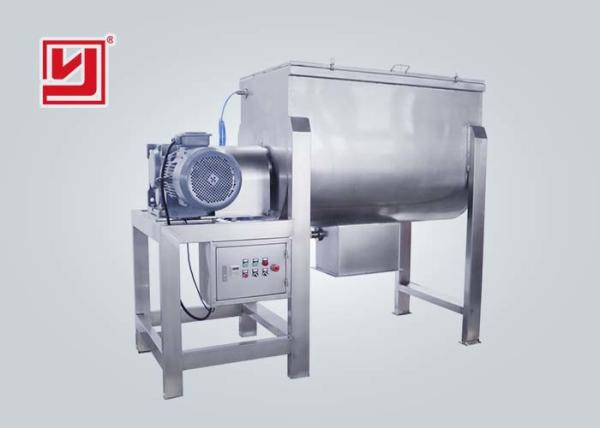

horizontal powder ribbon mixer
1. The horizontal ribbon mixer is mainly applied for dry powder,
granule, or stirring and mixing of powder and liquid, especially
for the powder and granular which with stick or cohesion character,
or add a little liquid and paste material into powder and granular
material. The mixture effect is high. It is widely used for
pharmaceutical, food, cosmetic industries.
2. Characteristics
1. Good effect, 0.1% equal mixed.
This mixing machine/blender has two ribbon inside. The outer ribbon
make the material move from the sides to the center, and the inner
ribbon moves the material from the center to the sides.So the
material in the U-tank will get the complete mixing. 1gram additive
can be mixed equally in 1000 gram material.
2. High efficiency: 15-20 min.
TDPM series mixer/blender with double ribbon can make the material
mixed with higher speed.Generally, the material will be completely
mixed in 15 to 20 minutes.
3. Special design: no leakage, no remaining.
Under the bottom of the tank, there is a flap dome valve (pneumatic
control or manual control) of the center. The valve is arc design
to make sure no material deposit and no dead angle when mixing.
There is a lid and fence on the top of the tank.It seals the tank
well,so that no powder will come out during mixing.
4. Durable & stable: polishing SUS 304.
All the material of this mixing machine /blender is made of
Stainless Steel 304. Easy to keep clean tidy. At the same time, we
can provide SUS 316 material type. Inner side is polish surface
like a mirror, so there is no contamination of different batch of
powder. TDPM series mixer is with CE certificate.
5. Costmized function:
A. Size and height: We have different size and height from 200L to 2000L,and we can
design a special type to meet your need,
B. Cooling or heating: This mixer can be designed to cooling or heating the powder
inside. We can add layer outside the tank to form an inter layer.
We can fill water or steam to heat or cool the materials in the
tank.
C. Liquid spraying system: We can add an auto spraying nozzle to mix liquid with powder.
Specifications
| Model | TDPM 100 | TDPM 200 | TDPM 300 | TDPM 500 | TDPM 1000 | TDPM 1500 | TDPM 2000 | TDPM 3000 | TDPM 5000 | TDPM 10000 |
| Capacity(L) | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 10000 |
| Volume(L) | 140 | 280 | 420 | 710 | 1420 | 1800 | 2600 | 3800 | 7100 | 14000 |
| Loading rate | 40%-70% |
| Length(mm) | 1050 | 1370 | 1550 | 1773 | 2394 | 2715 | 3080 | 3744 | 4000 | 5515 |
| Width(mm) | 700 | 834 | 970 | 1100 | 1320 | 1397 | 1625 | 1330 | 1500 | 1768 |
| Height(mm) | 1440 | 1647 | 1655 | 1855 | 2187 | 2313 | 2453 | 2718 | 1750 | 2400 |
| Weight(kg) | 180 | 250 | 350 | 500 | 700 | 1000 | 1300 | 1600 | 2100 | 2700 |
| Total Power(kw) | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 | 75 |
Main Features
1) Simple structure in horizontal U shape ,easy in installation and
maintenance.
2) Adopting advanced world famous brand components in pneumatic
parts ,motor,electric parts ,bearings and operation parts.
3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safeyty net on the cover, so that operator cannot reach
out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material
