plate and frame filter press oil press filter price spiral filter
press belt

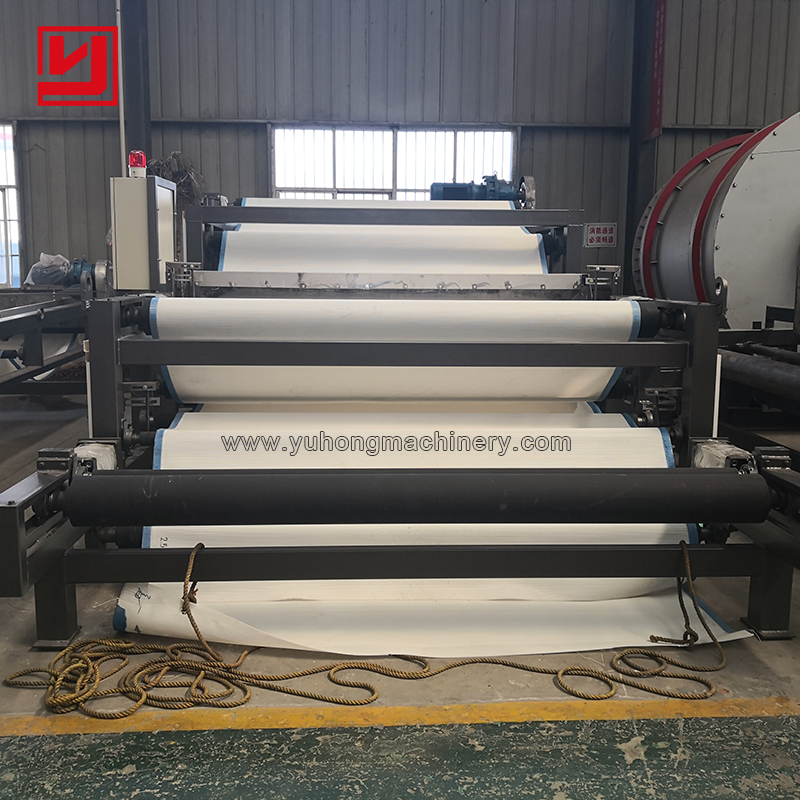

Description
The structure design of the belt press dehydrator has advanced the
technical level of the international counterparts. It effectively
solves the problems of dehydration of plant wastes and slag
materials, and can greatly reduce the moisture content of the
materials. Especially suitable for long fiber slags, such as:
cassava residue, soya residue, beer dregs, chicken manure, food
waste, coco peat, palm oil residue and so on. The equipment has a
high degree of automation, continuous production, large processing
capacity, low moisture content of the slag cake after dehydration.
Low energy consumption, low operating costs, easy operation and
maintenance.
Function & application
The belt filter (sometimes called a belt press filter, or belt
filter press) is an industrial machine, used for solid/liquid
separation processes, particularly the dewatering of sludge in the
chemical industry, mining, food processing and water treatment. The
process of filtration is primarily obtained by passing a pair of
filtering belts through a system of rollers. The system takes a
sludge as a feed, and separates it into a filtrate and a solid
cake.
As a part in waste water treatment system, it is used for
dewatering of suspended particles and residue after treated so as
to avoid secondary pollution.
It is also applicable for treatment of thickener concentration and
black liquor extraction,including municipal sewage, textile
printing and dyeing, electroplating, papermaking, leather, brewing,
food processing, coal washing, petrochemical, chemical,
metallurgical, pharmaceutical, ceramic and other industries sludge
dewatering treatment.
Feature & benefit
1. Large treating capacity
2. Low energy consumption and low cost
3. Unique tilt and long wedge area ensures stable performance
4. Long gravity dewatering area with strong treating capacity,
heavy load capacity, low energy consumption and low cost.
5. Unique tilt and long wedge area ensures stable performance.
6. Multi-roller decreasing dia. is compact in configuration and
improves solid-content of filter cake.
7. New auto-adjusting and tilting system greatly improves life time
of filter belt.
8. Adopts two independent backwash systems.
Dehydration effect table of common materials
Material | Material Moisture(%) | Filter Cake Moisture(%) | Capacity(m3/h) |
Municipal sewage plant sludge | 96-98 | 75-80 | 5-6 |
Waterworks Sludge | 87-98 | 75-80 | 4-5 |
Paper mill sludge | 96-98 | 75-80 | 5-6 |
Sludge from printing and dyeing plant | 97-98 | 80-82 | 4-5 |
| Steel plant sludge | 70-72 | 17-19 | 6-8 |
| Soda plant salt mud | 77-80 | 55-58 | 6-8 |
| Acidic wastewater and sludge | 65-85 | 35-50 | 6-8 |
| Organic chemical plant sludge | 95-98 | 50-55 | 5-6 |
| Refinery sludge | 97-98 | 75-80 | 4-5 |
OUR SERVICE
01. Detailed installation manual and maintenance guideline are
provided with the equipment.
02. Technical training and site-commissioning are available for
you.
03.Any equipment issue, we will stand by. However, the visa fee,
air tickets, accommodation, wages will be paid by buyers.
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message
,you will get 5% discount price.
Q2: What are the requirements for belt filter press?
A2: Our Yuhong has a high standard on choosing material of belt
filter press.
1.Using very high grade steel plate (i.e. Q235, Q345) on
structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo,
ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5
brands;
4. Metallurgy performance must be considered during designing,
cutting, bending, fitting&welding.
Q3: What information do we need to provide you the reasonable model
and best quotation?
A3: 1. How much sludge is produced per hour?
2.What is the type of the sludge? Piling sludge ,sand sludge, ore
pulp sludge and so on ?
3. What is the solids content of sludge? And What is the particles
size of the solids?
4. What is the processing capacity per hour?
Company and factory
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining
machinery manufacturing enterprise integrated in scientific
research,prodcution and marketing.our main products include five
series ,they are the Crushing equipment ,Beneficiation
equipment,Grinding Powder equipment ,Drying equipment ,Kilning
equipment.YUHONG GROUP set off from "the customer for this " angle
,put self's whole heart to be that the customer provides the
valuable service pattern,the effort using up 100% satisfies
different customer product need.
